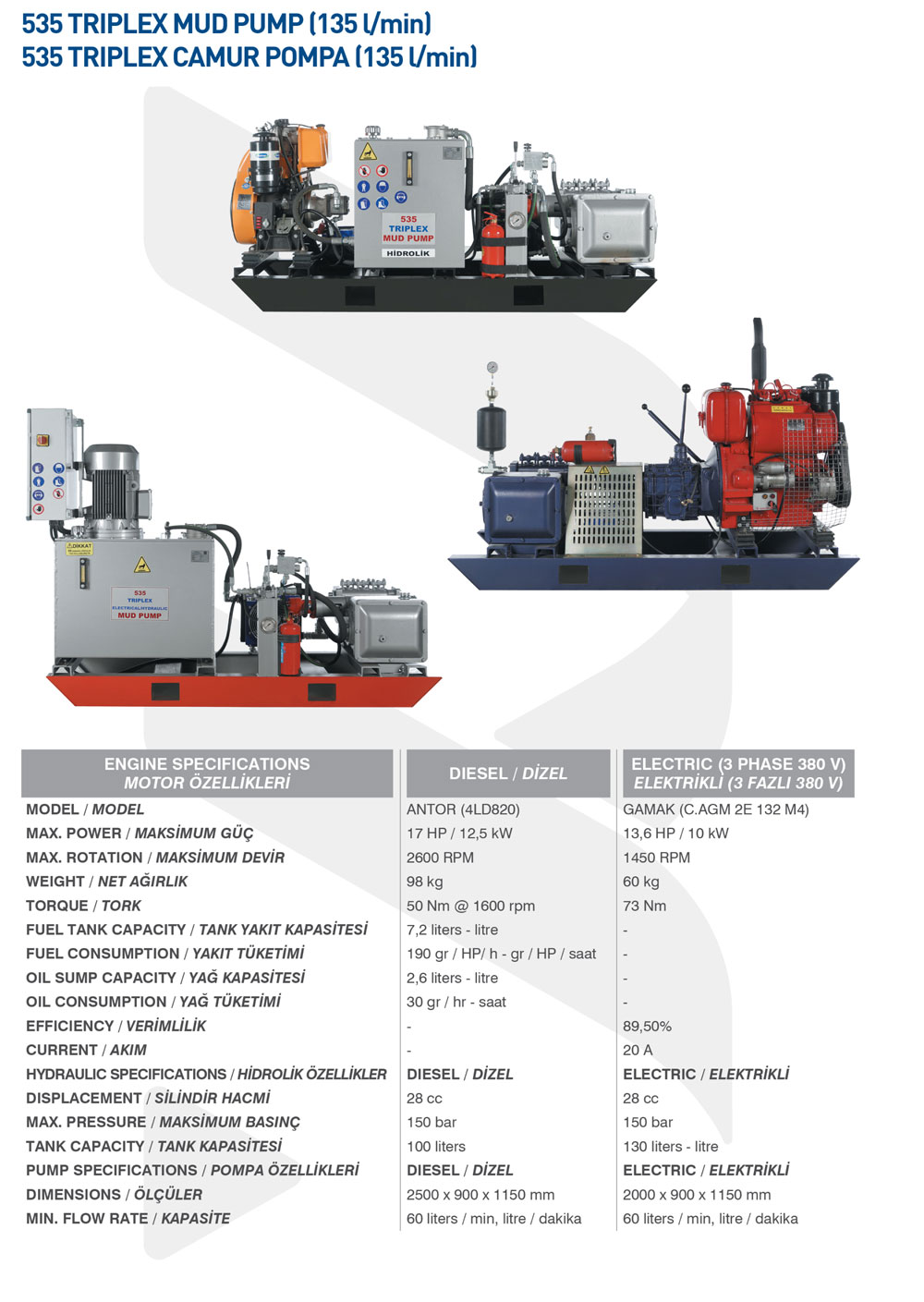

ENGINE SPECIFICATIONS DIESEL ELECTRIC (3 PHASE 380 V)
MODEL ANTOR (4LD820) GAMAK (C.AGM 2E 132 M4)
MAX. POWER 17 HP / 12,5 kW 13,6 HP / 10 kW
MAX. ROTATION 2600 RPM 1450 RPM
WEIGHT 98 kg 60 kg
TORQUE 50 Nm @ 1600 rpm 73 Nm
FUEL TANK CAPACITY 7,2 liters -
FUEL CONSUMPTION 190 gr / HP/ h -
OIL SUMP CAPACITY 2,6 liters -
OIL CONSUMPTION 30 gr / hr -
EFFICIENCY - 89,50%
CURRENT - 20 A
HYDRAULIC SPECIFICATIONS DIESEL ELECTRIC / ELEKTRİKLİ
DISPLACEMENT 28 cc 28 cc
MAX. PRESSURE 150 bar 150 bar
TANK CAPACITY 100 liters 130 liters
PUMP SPECIFICATIONS DIESEL ELECTRIC
DIMENSIONS 2500 x 900 x 1150 mm 2000 x 900 x 1150 mm
MIN. FLOW RATE 60 liters / min 60 liters / min
