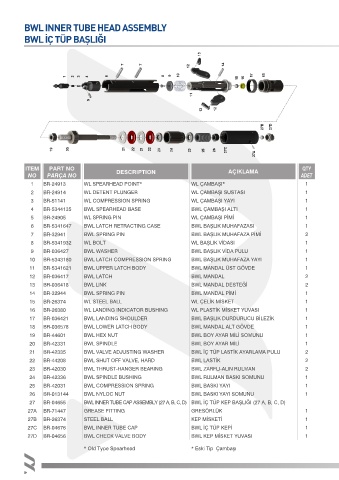

BWL INNER TUBE HEAD ASSEMBLY
BWL İÇ TÜP BAŞLIĞI

ITEM PART NO DESCRIPTION AÇIKLAMA QTY
NO PARÇA NO ADET
1 BR-24913 WL SPEARHEAD POINT* WL ÇAMBAŞI* 1
2 BR-24914 WL DETENT PLUNGER WL ÇAMBAŞI SUSTASI 1
3 BR-51141 WL COMPRESSION SPRING WL ÇAMBAŞI YAYI 1
4 BR-5344135 BWL SPEARHEAD BASE BWL ÇAMBAŞI ALTI 1
5 BR-24905 WL SPRING PIN WL ÇAMBAŞI PİMİ 1
6 BR-5341647 BWL LATCH RETRACTING CASE BWL BAŞLIK MUHAFAZASI 1
7 BR-32941 BWL SPRING PIN BWL BAŞLIK MUHAFAZA PİMİ 2
8 BR-5341932 WL BOLT WL BAŞLIK VİDASI 1
9 BR-036427 BWL WASHER BWL BAŞLIK VİDA PULU 1
10 BR-5343180 BWL LATCH COMPRESSION SPRING BWL BAŞLIK MUHAFAZA YAYI 1
11 BR-5341621 BWL UPPER LATCH BODY BWL MANDAL ÜST GÖVDE 1
12 BR-036417 BWL LATCH BWL MANDAL 2
13 BR-036418 BWL LINK BWL MANDAL DESTEĞİ 2
14 BR-32944 BWL SPRING PIN BWL MANDAL PİMİ 1
15 BR-26374 WL STEEL BALL WL ÇELİK MİSKET 1
16 BR-26380 WL LANDING INDICATOR BUSHING WL PLASTİK MİSKET YUVASI 1
17 BR-036421 BWL LANDING SHOULDER BWL BAŞLIK DURDURUCU BİLEZİK 1
18 BR-036578 BWL LOWER LATCH BODY BWL MANDAL ALT GÖVDE 1
19 BR-44601 BWL HEX NUT BWL BOY AYAR MİLİ SOMUNU 1
20 BR-42331 BWL SPINDLE BWL BOY AYAR MİLİ 1
21 BR-42335 BWL VALVE ADJUSTING WASHER BWL İÇ TÜP LASTİK AYARLAMA PULU 2
22 BR-44208 BWL SHUT OFF VALVE, HARD BWL LASTİK 2
23 BR-42030 BWL THRUST-HANGER BEARING BWL ZARFLI-ALIN RULMAN 2
24 BR-42336 BWL SPINDLE BUSHING BWL RULMAN BASKI SOMUNU 1
25 BR-42031 BWL COMPRESSION SPRING BWL BASKI YAYI 1
26 BR-013144 BWL NYLOC NUT BWL BASKI YAYI SOMUNU 1
27 BR-04655 BWL INNER TUBE CAP ASSEMBLY (27 A, B, C, D) BWL İÇ TÜP KEP BAŞLIĞI (27 A, B, C, D)
27A BR-71447 GREASE FITTING GRESÖRLÜK 1
27B BR-26374 STEEL BALL KEP MİSKETİ 1
27C BR-04676 BWL INNER TUBE CAP BWL İÇ TÜP KEPİ 1
27D BR-04656 BWL CHECK VALVE BODY BWL KEP MİSKET YUVASI 1

* Old Type Spearhead * Eski Tip Çambaşı
