WIRELINE CORING SYSTEM

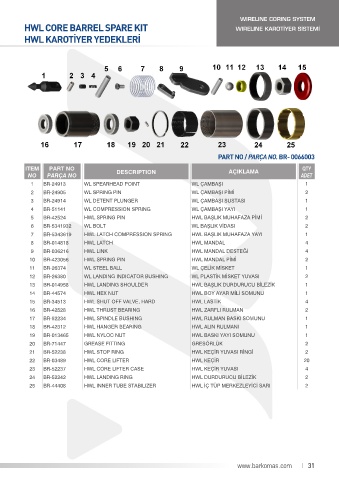

HWL CORE BARREL SPARE KIT WIRELINE KAROTİYER SİSTEMİ
HWL KAROTİYER YEDEKLERİ

PART NO / PARÇA NO. BR- 0066003

ITEM PART NO DESCRIPTION AÇIKLAMA QTY
NO PARÇA NO ADET
1 BR-24913 WL SPEARHEAD POINT WL ÇAMBAŞI 1
2 BR-24905 WL SPRING PIN WL ÇAMBAŞI PİMİ 2
3 BR-24914 WL DETENT PLUNGER WL ÇAMBAŞI SUSTASI 1
4 BR-51141 WL COMPRESSION SPRING WL ÇAMBAŞI YAYI 1
5 BR-42524 HWL SPRING PIN HWL BAŞLIK MUHAFAZA PİMİ 2
6 BR-5341932 WL BOLT WL BAŞLIK VİDASI 2
7 BR-5343619 HWL LATCH COMPRESSION SPRING HWL BAŞLIK MUHAFAZA YAYI 1
8 BR-014818 HWL LATCH HWL MANDAL 4
9 BR-036216 HWL LINK HWL MANDAL DESTEĞİ 4
10 BR-423056 HWL SPRING PIN HWL MANDAL PİMİ 2
11 BR-26374 WL STEEL BALL WL ÇELİK MİSKET 1
12 BR-26380 WL LANDING INDICATOR BUSHING WL PLASTİK MİSKET YUVASI 2
13 BR-014958 HWL LANDING SHOULDER HWL BAŞLIK DURDURUCU BİLEZİK 1
14 BR-44574 HWL HEX NUT HWL BOY AYAR MİLİ SOMUNU 1
15 BR-34513 HWL SHUT OFF VALVE, HARD HWL LASTİK 4
16 BR-42528 HWL THRUST BEARING HWL ZARFLI RULMAN 2
17 BR-52234 HWL SPINDLE BUSHING HWL RULMAN BASKI SOMUNU 1
18 BR-42312 HWL HANGER BEARING HWL ALIN RULMANI 1
19 BR-013465 HWL NYLOC NUT HWL BASKI YAYI SOMUNU 1
20 BR-71447 GREASE FITTING GRESÖRLÜK 2
21 BR-52238 HWL STOP RING HWL KEÇİR YUVASI RİNGİ 2
22 BR-03489 HWL CORE LIFTER HWL KEÇİR 20
23 BR-52237 HWL CORE LIFTER CASE HWL KEÇİR YUVASI 4
24 BR-52242 HWL LANDING RING HWL DURDURUCU BİLEZİK 2
25 BR-44408 HWL INNER TUBE STABILIZER HWL İÇ TÜP MERKEZLEYİCİ SARI 2

www.barkomas.com 31
