P. 16

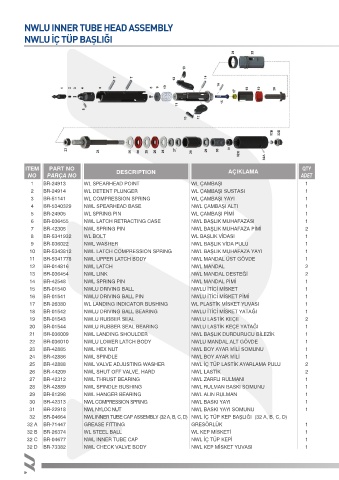

NWLU INNER TUBE HEAD ASSEMBLY
NWLU İÇ TÜP BAŞLIĞI
ITEM PART NO DESCRIPTION AÇIKLAMA QTY
NO PARÇA NO ADET
1 BR-24913 WL SPEARHEAD POINT WL ÇAMBAŞI 1
2 BR-24914 WL DETENT PLUNGER WL ÇAMBAŞI SUSTASI 1
3 BR-51141 WL COMPRESSION SPRING WL ÇAMBAŞI YAYI 1
4 BR-5340329 NWL SPEARHEAD BASE NWL ÇAMBAŞI ALTI 1
5 BR-24905 WL SPRING PIN WL ÇAMBAŞI PİMİ 1
6 BR-036455 NWL LATCH RETRACTING CASE NWL BAŞLIK MUHAFAZASI 1
7 BR-42305 NWL SPRING PIN NWL BAŞLIK MUHAFAZA PİMİ 2
8 BR-5341932 WL BOLT WL BAŞLIK VİDASI 1
9 BR-036022 NWL WASHER NWL BAŞLIK VİDA PULU 1
10 BR-5343812 NWL LATCH COMPRESSION SPRING NWL BAŞLIK MUHAFAZA YAYI 1
11 BR-5341778 NWL UPPER LATCH BODY NWL MANDAL ÜST GÖVDE 1
12 BR-014816 NWL LATCH NWL MANDAL 2
13 BR-036454 NWL LINK NWL MANDAL DESTEĞİ 2
14 BR-42548 NWL SPRING PIN NWL MANDAL PİMİ 1
15 BR-01540 NWLU DRIVING BALL NWLU İTİCİ MİSKET 1
16 BR-01541 NWLU DRIVING BALL PIN NWLU İTİCİ MİSKET PİMİ 1
17 BR-26380 WL LANDING INDICATOR BUSHING WL PLASTİK MİSKET YUVASI 1
18 BR-01542 NWLU DRIVING BALL BEARING NWLU İTİCİ MİSKET YATAĞI 1
19 BR-01543 NWLU RUBBER SEAL NWLU LASTİK KEÇE 2
20 BR-01544 NWLU RUBBER SEAL BEARING NWLU LASTİK KEÇE YATAĞI 1
21 BR-036009 NWL LANDING SHOULDER NWL BAŞLIK DURDURUCU BİLEZİK 1
22 BR-036010 NWLU LOWER LATCH BODY NWLU MANDAL ALT GÖVDE 1
23 BR-42885 NWL HEX NUT NWL BOY AYAR MİLİ SOMUNU 1
24 BR-42886 NWL SPINDLE NWL BOY AYAR MİLİ 1
25 BR-42888 NWL VALVE ADJUSTING WASHER NWL İÇ TÜP LASTİK AYARLAMA PULU 2
26 BR-44209 NWL SHUT OFF VALVE, HARD NWL LASTİK 2
27 BR-42312 NWL THRUST BEARING NWL ZARFLI RULMANI 1
28 BR-42889 NWL SPINDLE BUSHING NWL RULMAN BASKI SOMUNU 1
29 BR-81298 NWL HANGER BEARING NWL ALIN RULMAN 1
30 BR-42313 NWL COMPRESSION SPRING NWL BASKI YAYI 1
31 BR-22918 NWL NYLOC NUT NWL BASKI YAYI SOMUNU 1
32 BR-04664 NWL INNER TUBE CAP ASSEMBLY (32 A, B, C, D) NWL İÇ TÜP KEP BAŞLIĞI (32 A, B, C, D)
32 A BR-71447 GREASE FITTING GRESÖRLÜK 1
32 B BR-26374 WL STEEL BALL WL KEP MİSKETİ 1
32 C BR-04677 NWL INNER TUBE CAP NWL İÇ TÜP KEPİ 1
32 D BR-73382 NWL CHECK VALVE BODY NWL KEP MİSKET YUVASI 1
