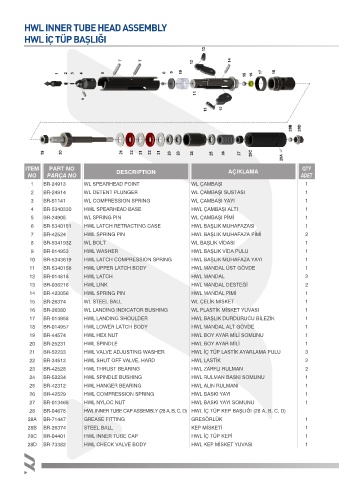

HWL INNER TUBE HEAD ASSEMBLY
HWL İÇ TÜP BAŞLIĞI

ITEM PART NO DESCRIPTION AÇIKLAMA QTY
NO PARÇA NO ADET
1 BR-24913 WL SPEARHEAD POINT WL ÇAMBAŞI 1
2 BR-24914 WL DETENT PLUNGER WL ÇAMBAŞI SUSTASI 1
3 BR-51141 WL COMPRESSION SPRING WL ÇAMBAŞI YAYI 1
4 BR-5340330 HWL SPEARHEAD BASE HWL ÇAMBAŞI ALTI 1
5 BR-24905 WL SPRING PIN WL ÇAMBAŞI PİMİ 1
6 BR-5340151 HWL LATCH RETRACTING CASE HWL BAŞLIK MUHAFAZASI 1
7 BR-42524 HWL SPRING PIN HWL BAŞLIK MUHAFAZA PİMİ 2
8 BR-5341932 WL BOLT WL BAŞLIK VİDASI 1
9 BR-014953 HWL WASHER HWL BAŞLIK VİDA PULU 1
10 BR-5343619 HWL LATCH COMPRESSION SPRING HWL BAŞLIK MUHAFAZA YAYI 1
11 BR-5340156 HWL UPPER LATCH BODY HWL MANDAL ÜST GÖVDE 1
12 BR-014818 HWL LATCH HWL MANDAL 2
13 BR-036216 HWL LINK HWL MANDAL DESTEĞİ 2
14 BR-423056 HWL SPRING PIN HWL MANDAL PİMİ 1
15 BR-26374 WL STEEL BALL WL ÇELİK MİSKET 1
16 BR-26380 WL LANDING INDICATOR BUSHING WL PLASTİK MİSKET YUVASI 1
17 BR-014958 HWL LANDING SHOULDER HWL BAŞLIK DURDURUCU BİLEZİK 1
18 BR-014957 HWL LOWER LATCH BODY HWL MANDAL ALT GÖVDE 1
19 BR-44574 HWL HEX NUT HWL BOY AYAR MİLİ SOMUNU 1
20 BR-25231 HWL SPINDLE HWL BOY AYAR MİLİ 1
21 BR-52233 HWL VALVE ADJUSTING WASHER HWL İÇ TÜP LASTİK AYARLAMA PULU 3
22 BR-34513 HWL SHUT OFF VALVE, HARD HWL LASTİK 2
23 BR-42528 HWL THRUST BEARING HWL ZARFLI RULMAN 2
24 BR-52234 HWL SPINDLE BUSHING HWL RULMAN BASKI SOMUNU 1
25 BR-42312 HWL HANGER BEARING HWL ALIN RULMANI 1
26 BR-42529 HWL COMPRESSION SPRING HWL BASKI YAYI 1
27 BR-013465 HWL NYLOC NUT HWL BASKI YAYI SOMUNU 1
28 BR-04678 HWL INNER TUBE CAP ASSEMBLY (28 A, B, C, D) HWL İÇ TÜP KEP BAŞLIĞI (28 A, B, C, D)
28A BR-71447 GREASE FITTING GRESÖRLÜK 1
28B BR-26374 STEEL BALL KEP MİSKETİ 1
28C BR-04401 HWL INNER TUBE CAP HWL İÇ TÜP KEPİ 1
28D BR-73382 HWL CHECK VALVE BODY HWL KEP MİSKET YUVASI 1
