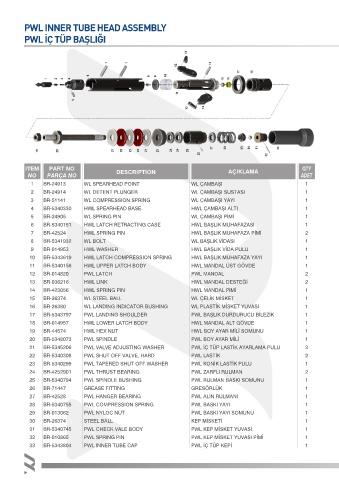

PWL INNER TUBE HEAD ASSEMBLY
PWL İÇ TÜP BAŞLIĞI

ITEM PART NO DESCRIPTION AÇIKLAMA QTY
NO PARÇA NO ADET
1 BR-24913 WL SPEARHEAD POINT WL ÇAMBAŞI 1
2 BR-24914 WL DETENT PLUNGER WL ÇAMBAŞI SUSTASI 1
3 BR-51141 WL COMPRESSION SPRING WL ÇAMBAŞI YAYI 1
4 BR-5340330 HWL SPEARHEAD BASE HWL ÇAMBAŞI ALTI 1
5 BR-24905 WL SPRING PIN WL ÇAMBAŞI PİMİ 1
6 BR-5340151 HWL LATCH RETRACTING CASE HWL BAŞLIK MUHAFAZASI 1
7 BR-42524 HWL SPRING PIN HWL BAŞLIK MUHAFAZA PİMİ 2
8 BR-5341932 WL BOLT WL BAŞLIK VİDASI 1
9 BR-014953 HWL WASHER HWL BAŞLIK VİDA PULU 1
10 BR-5343619 HWL LATCH COMPRESSION SPRING HWL BAŞLIK MUHAFAZA YAYI 1
11 BR-5340156 HWL UPPER LATCH BODY HWL MANDAL ÜST GÖVDE 1
12 BR-014820 PWL LATCH PWL MANDAL 2
13 BR-036216 HWL LINK HWL MANDAL DESTEĞİ 2
14 BR-423056 HWL SPRING PIN HWL MANDAL PİMİ 1
15 BR-26374 WL STEEL BALL WL ÇELİK MİSKET 1
16 BR-26380 WL LANDING INDICATOR BUSHING WL PLASTİK MİSKET YUVASI 1
17 BR-5343797 PWL LANDING SHOULDER PWL BAŞLIK DURDURUCU BİLEZİK 1
18 BR-014957 HWL LOWER LATCH BODY HWL MANDAL ALT GÖVDE 1
19 BR-44574 HWL HEX NUT HWL BOY AYAR MİLİ SOMUNU 1
20 BR-5348073 PWL SPINDLE PWL BOY AYAR MİLİ 1
21 BR-5345206 PWL VALVE ADJUSTING WASHER PWL İÇ TÜP LASTİK AYARLAMA PULU 3
22 BR-5340308 PWL SHUT OFF VALVE, HARD PWL LASTİK 2
23 BR-5340299 PWL TAPERED SHUT OFF WASHER PWL KONİK LASTİK PULU 1
24 BR-4252901 PWL THRUST BEARING PWL ZARFLI RULMAN 2
25 BR-5340794 PWL SPINDLE BUSHING PWL RULMAN BASKI SOMUNU 1
26 BR-71447 GREASE FITTING GRESÖRLÜK 1
27 BR-42528 PWL HANGER BEARING PWL ALIN RULMANI 1
28 BR-5340755 PWL COMPRESSION SPRING PWL BASKI YAYI 1
29 BR-013062 PWL NYLOC NUT PWL BASKI YAYI SOMUNU 1
30 BR-26374 STEEL BALL KEP MİSKETİ 1
31 BR-5340745 PWL CHECK VALE BODY PWL KEP MİSKET YUVASI 1
32 BR-010865 PWL SPRING PIN PWL KEP MİSKET YUVASI PİMİ 1
33 BR-5343804 PWL INNER TUBE CAP PWL İÇ TÜP KEPİ 1
